Gaze-Directed Volume Rendering

Marc Levoy and Ross Whitaker

Computer Graphics (Proc. 1990 Symposium on Interactive 3D Graphics),
Vol. 24, No. 2, Snowbird, Utah, March, 1990, pp. 217-223.

Also appears as:
Technical Report 89-048, Computer Science Department,
University of North Carolina at Chapel Hill, December, 1989.

Abstract:

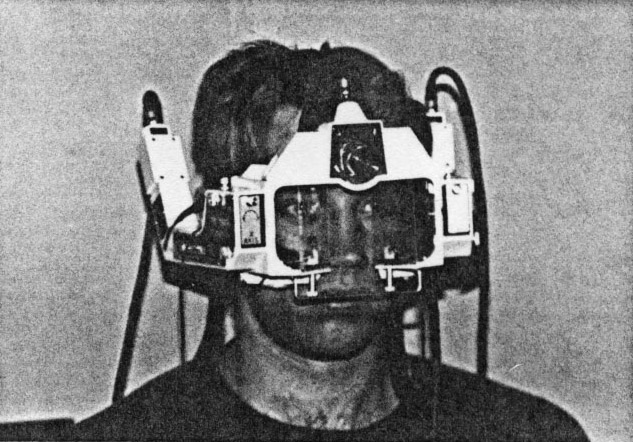

We direct our gaze at an object by rotating our eyes or head until the object's projection falls on the fovea, a small region of enhanced spatial acuity near the center of the retina. In this paper. we explore methods for encororating gaze direction into rendering algorithms. This approach permits generation of images exhibiting continuously varying resolution, and allows these images to be displayed on conventional television monitors. Specifically. we describe a ray tracer for volume data in which the number of rays cast per unit area on the image plane and the number of samples drawn per unit length along each ray are functions of local retinal acuity. We also describe an implementation using 2D and 3D mip maps, an eye tracker, and the Pixel-Planes 5 massively parallel raster display system. Pending completion of PixelPlanes 5 in the spring of 1990. we have written a simulator on a Stellar graphics supercomputer. Preliminary results indicate that while users are aware of the variable-resolution structure of the image, the high-resolution sweet spot follows their gaze well and promises to be useful in practice.

Additional information available:


This page © Copyright 2003 by Marc Levoy
The paper © Copyright 1989 by Marc Levoy and Ross Whitaker
