Raster displays

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 1999
Marc Levoy
Lecture notes for Tuesday September 28

Table of contents:

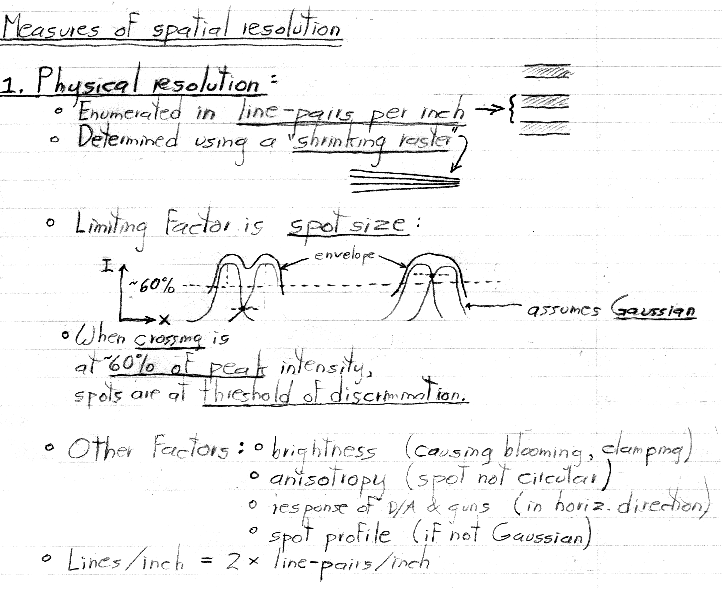

• Measures of spatial resolution
  • Physical resolution

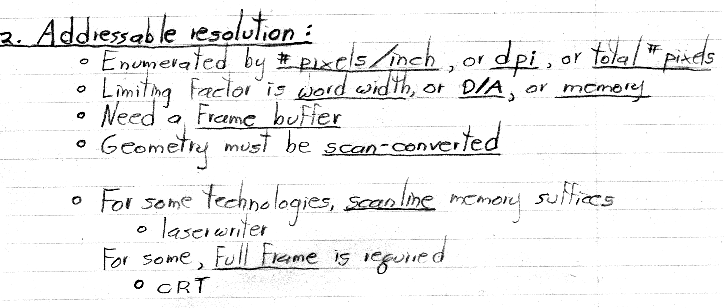

  • Addressable resolution

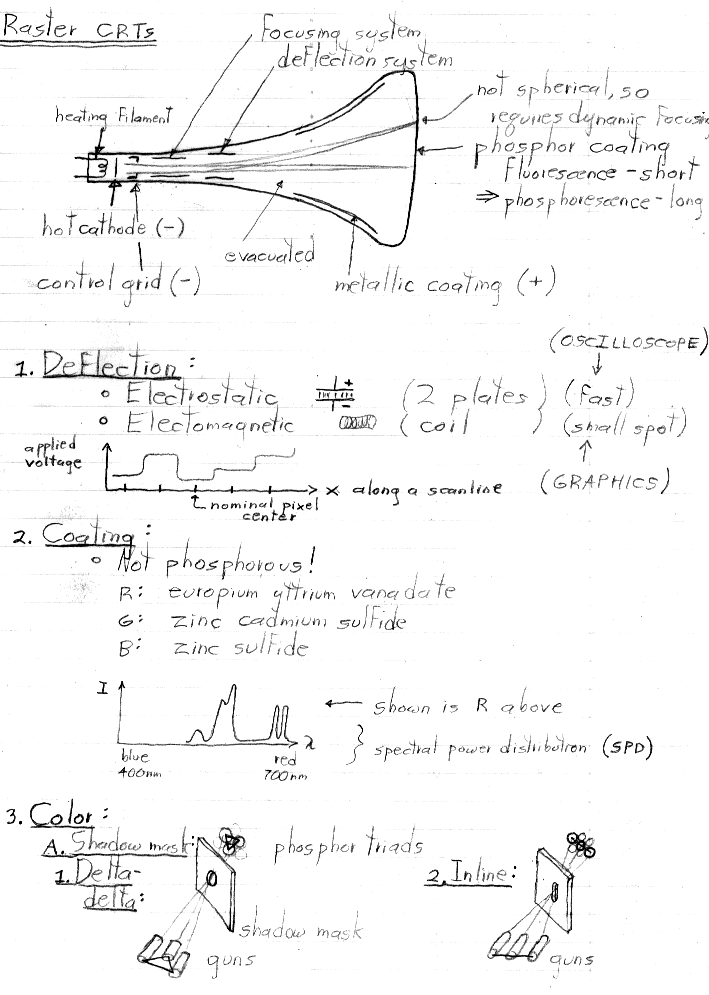

• Raster CRTs
  • Construction, deflection, coating, color

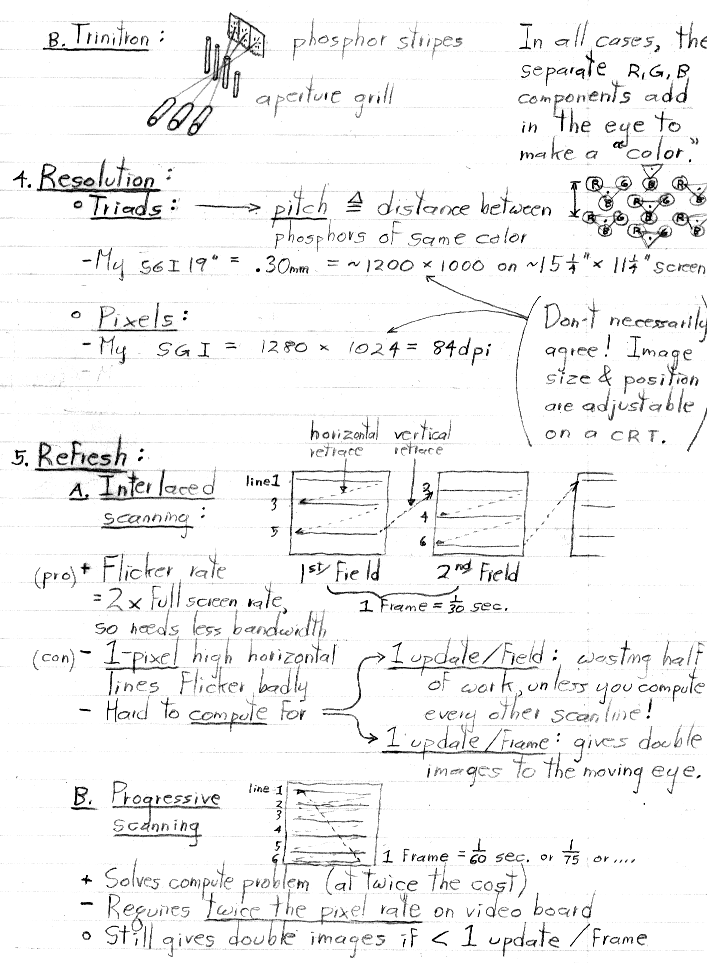

  • Resolution, refresh

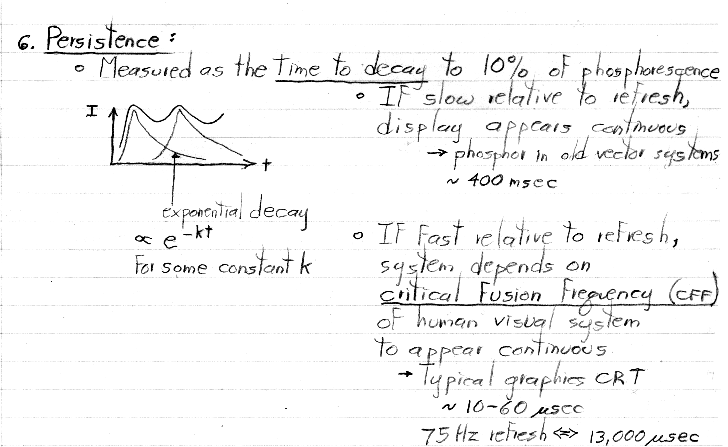

  • Persistence

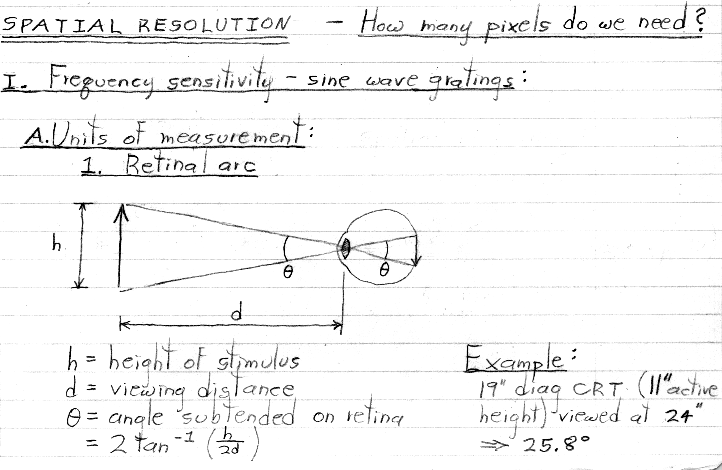

• Spatial resolution - How many pixels do we need?
  • Frequency sensitivity - sine wave gratings
    • Units of measurement

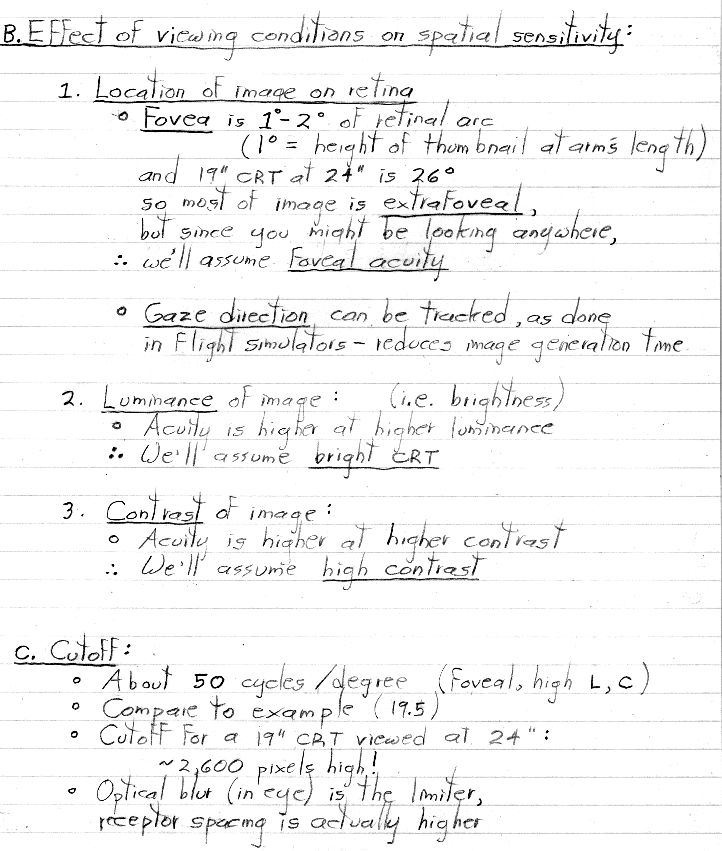

    • Effect of viewing conditions
    • Cutoff

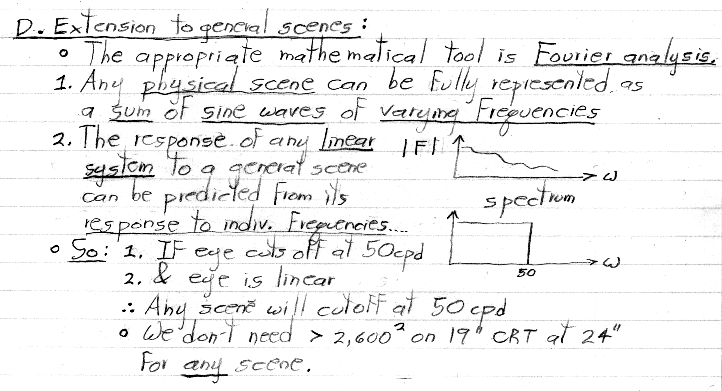

    • Extension to general scenes
  • Phase sensitivity - vernier acuity
    • Receptor spacing and point sampling

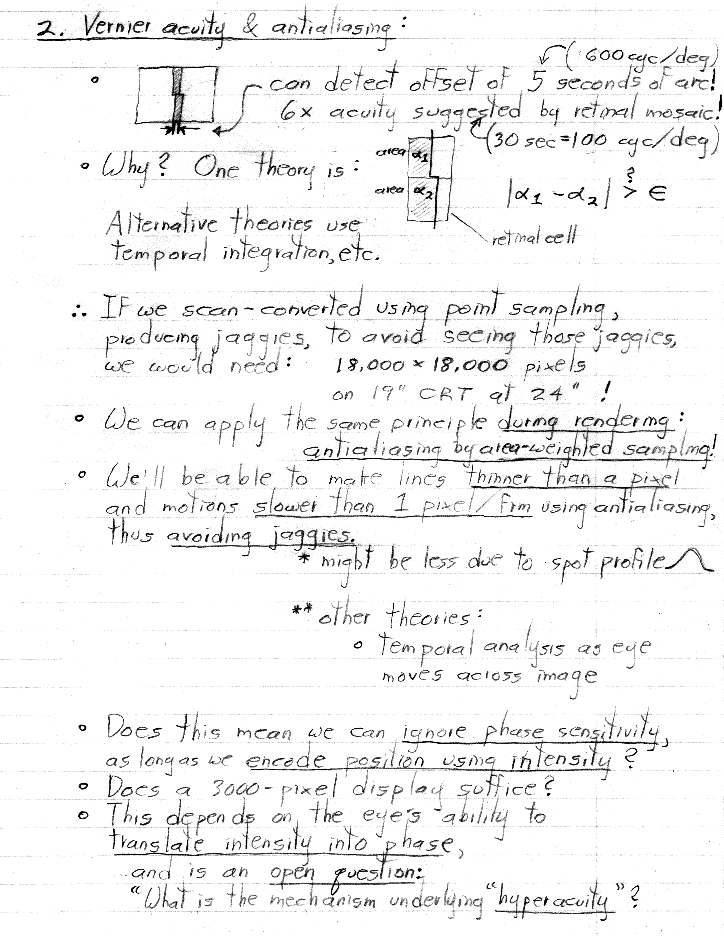

    • Vernier acuity and antialiasing

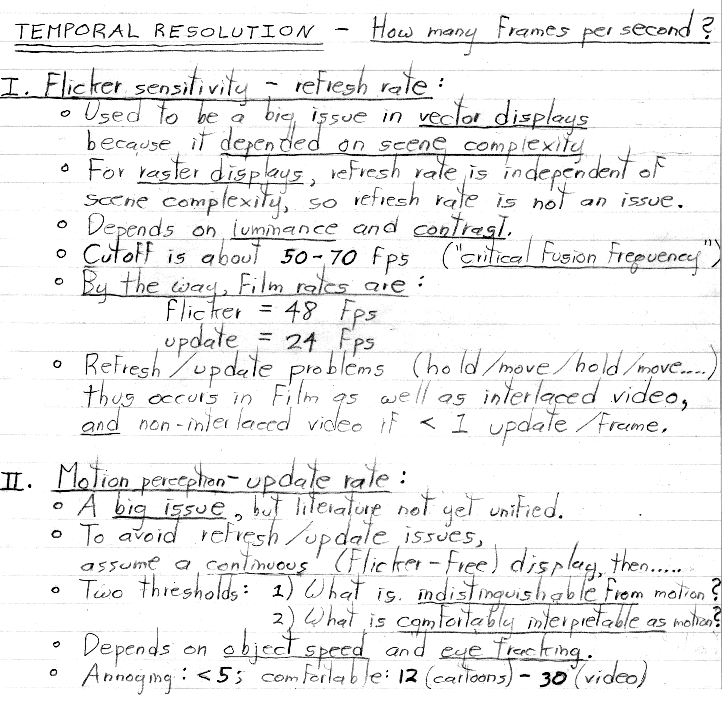

• Temporal resolution - How many frames per second?
  • Flicker sensitivity - refresh rate
  • Motion perception - update rate

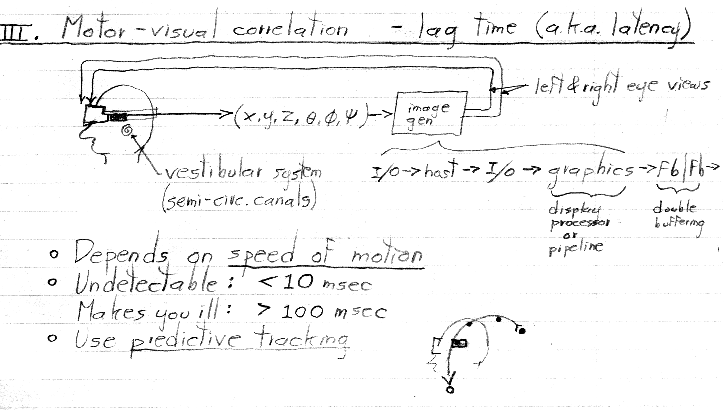

  • Motor-visual correlation - lag time
