Scan conversion of lines

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Tuesday, April 25

Table of contents:

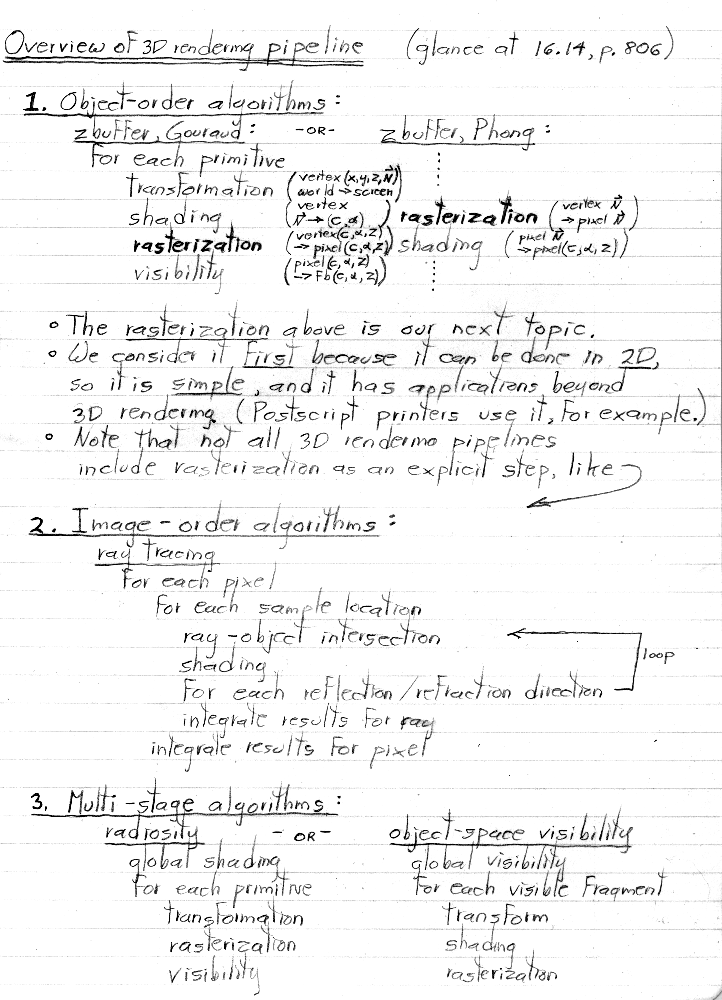

• Overview of 3D rendering pipeline

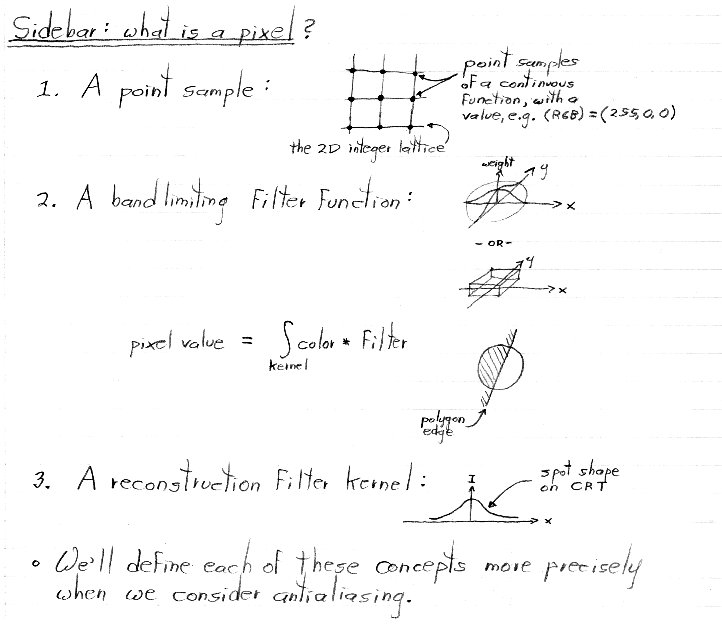

• Sidebar: What is a pixel?
• Line drawing

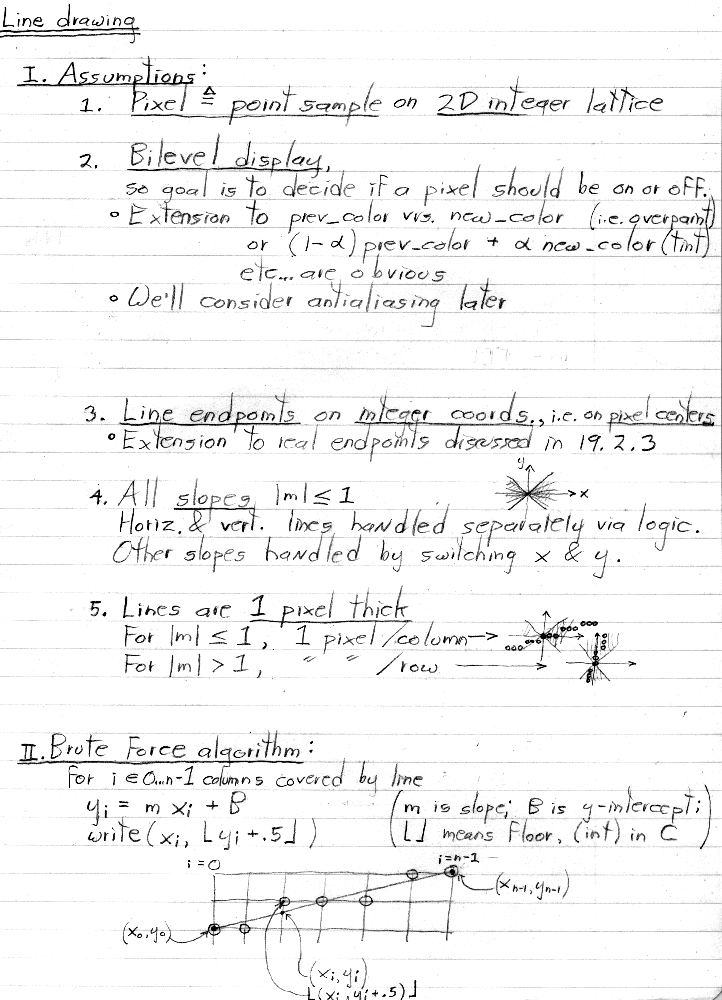

  1. Assumptions
  2. Brute force algorithm

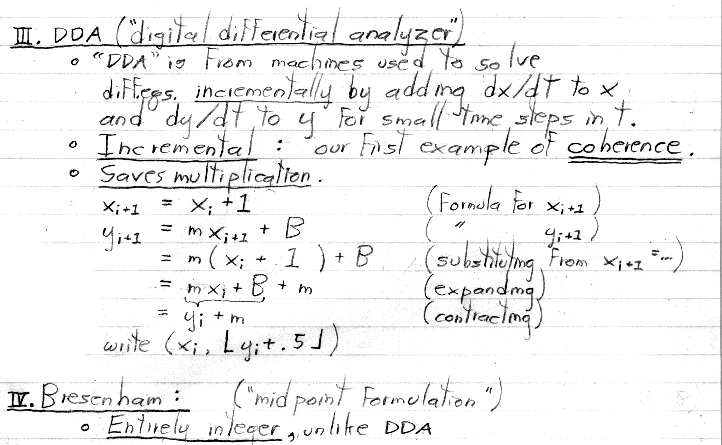

  3. DDA algorithm

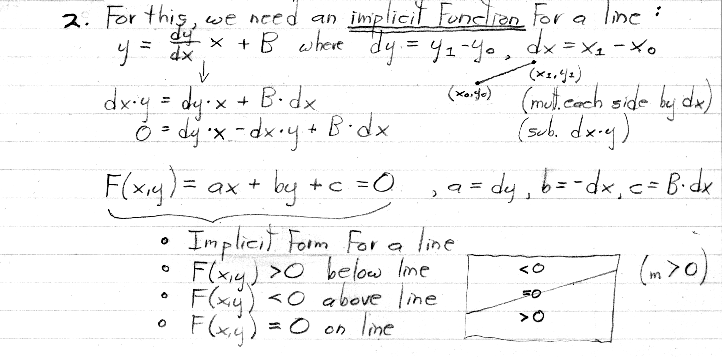

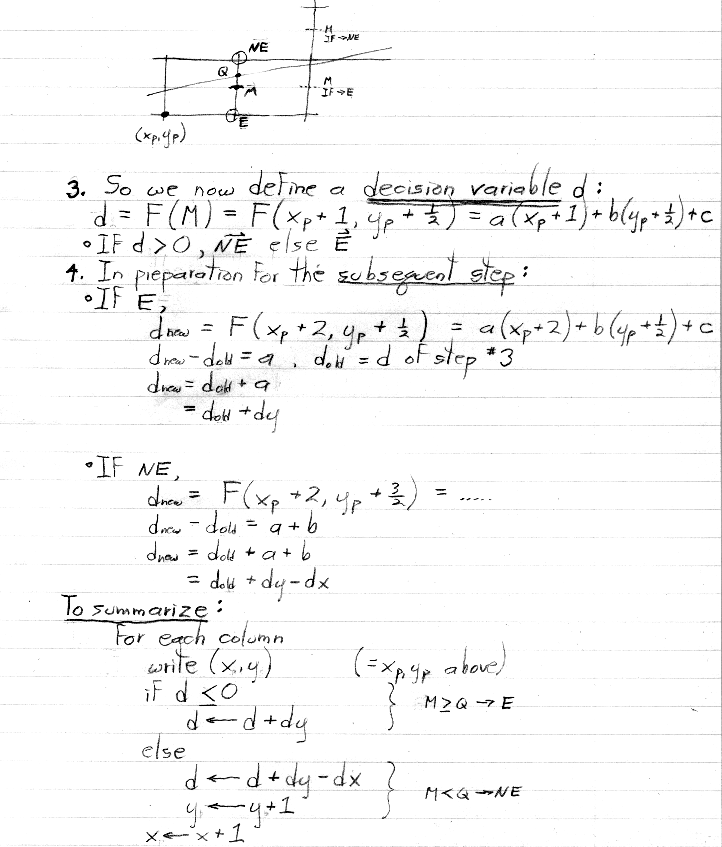

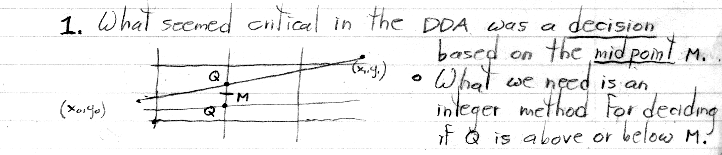

  4. Bresenham algorithm

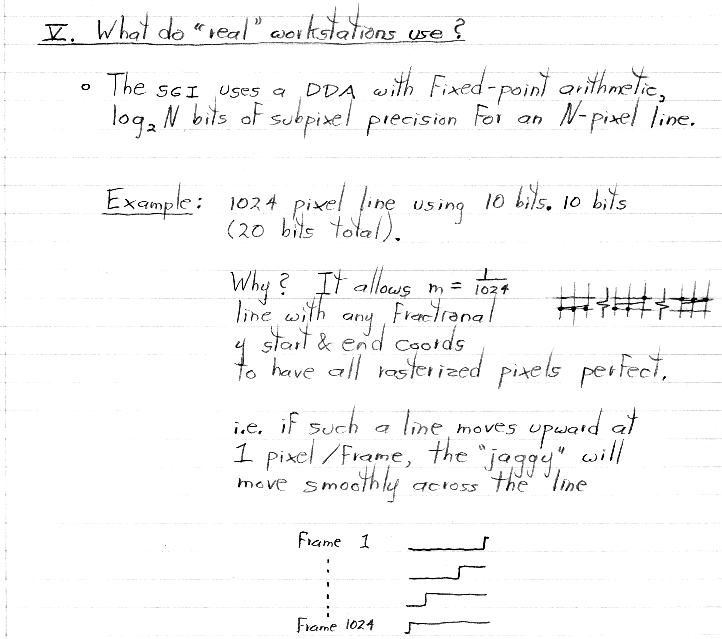

  5. What do real workstations use?

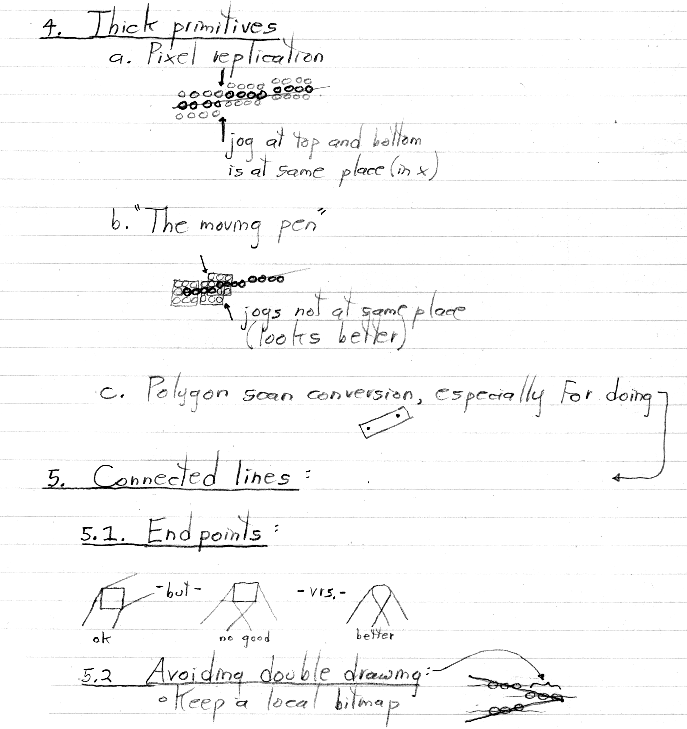

• Design issues for line drawing algorithms
