Sampling, aliasing, and antialiasing (part III)

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Thursday, May 4

Table of contents:

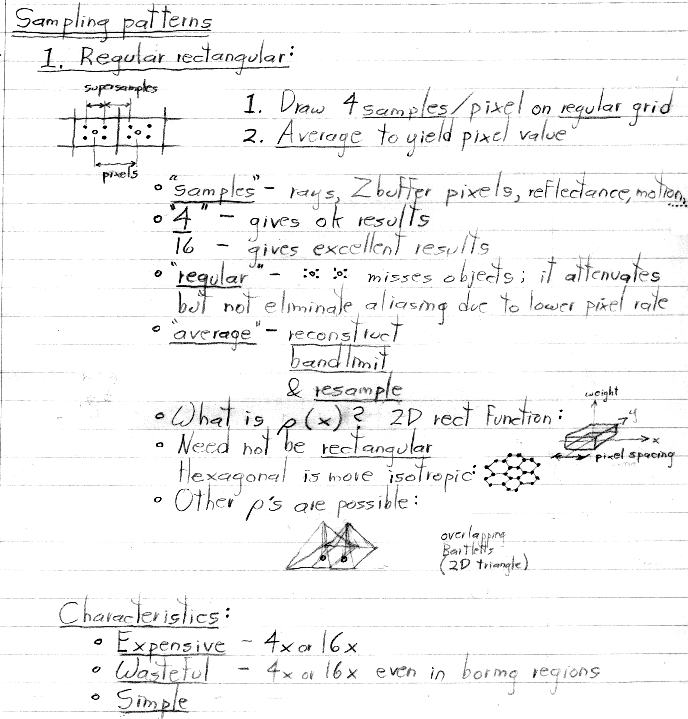

• Sampling patterns
  1. Regular rectangular
  2. Stochastic

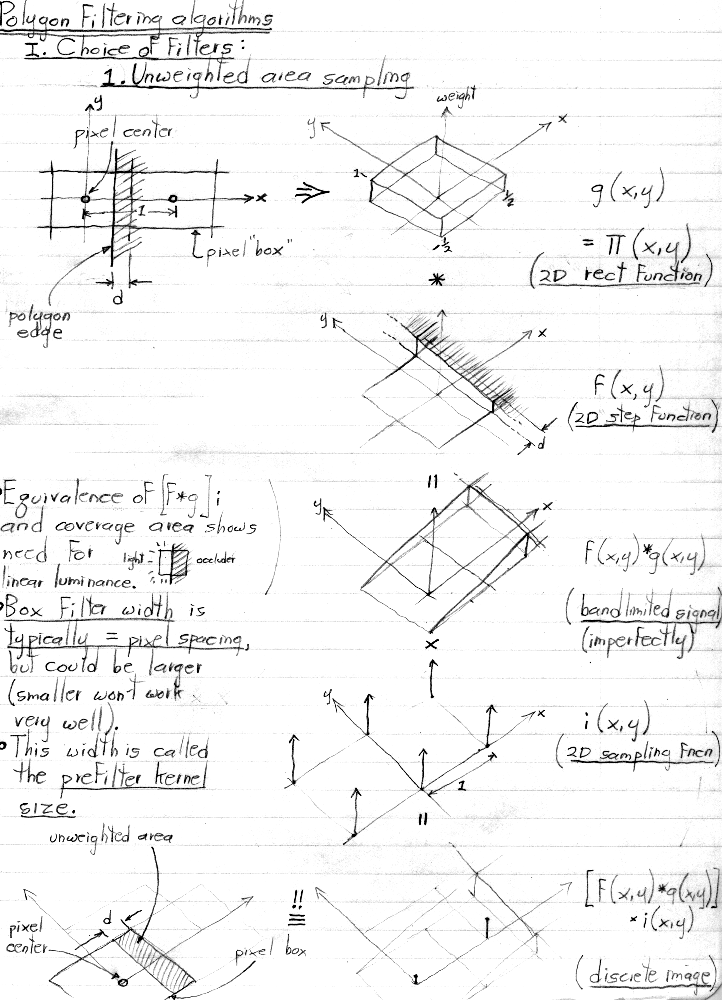

• Polygon filtering algorithms
  • Choice of filters
    1. Unweighted area sampling

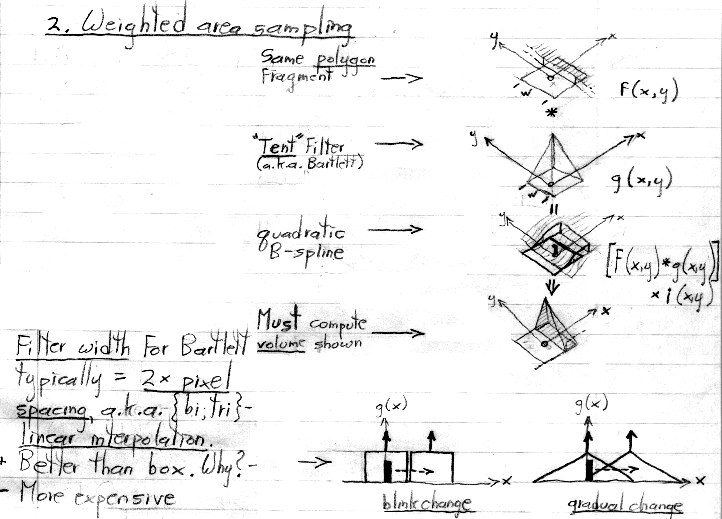

    2. Weighted area sampling

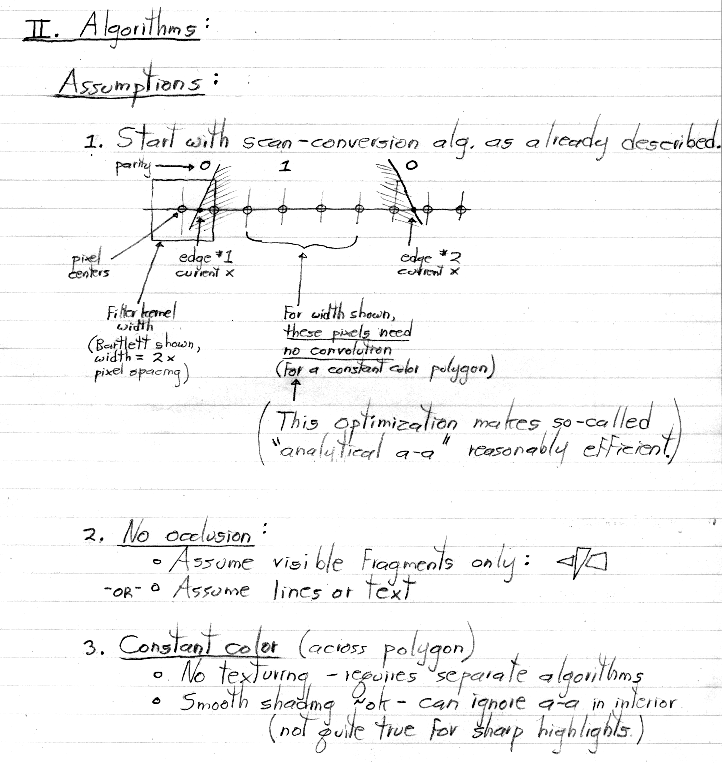

  • Assumptions
  • Algorithms

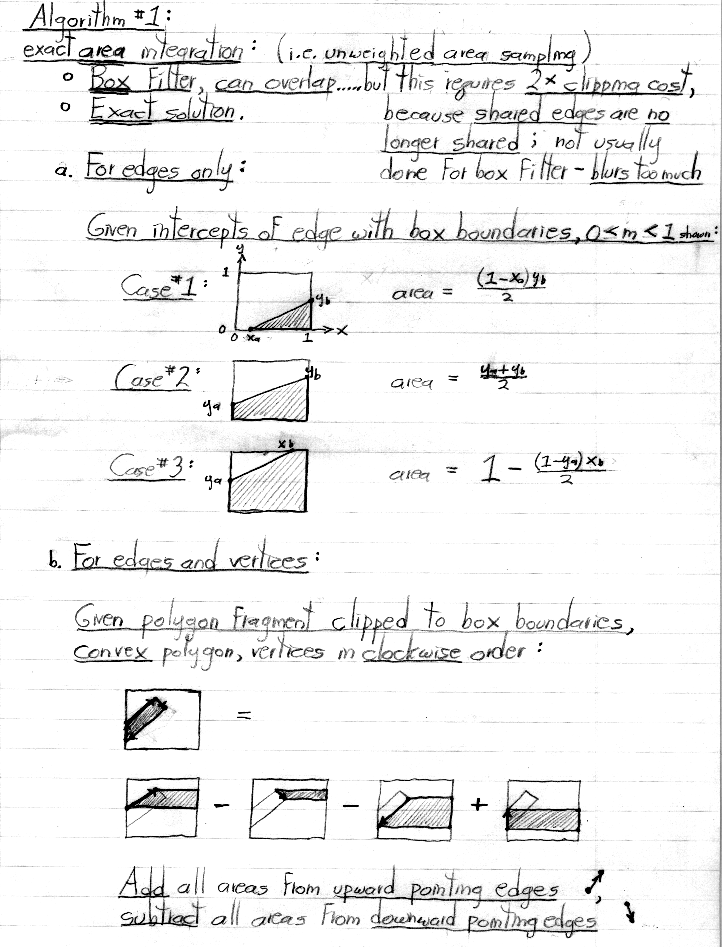

    1. Exact area integration
    2. Exact volume integration

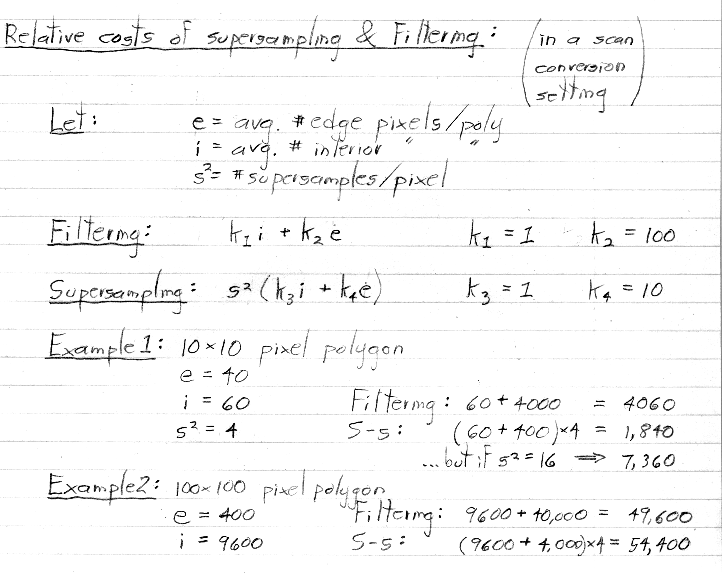

  • Relative costs of supersampling versus filtering

Press here for part I of this lecture.
Press here for part II of this lecture.
